Litz wire and assembled wire coils
|
Creating litz wire and assembled wire |
|
Definition: |
|
Litz wire: a wire made from multiple wires twisted together |
|
Assembled wire: a wire that bundles multiple wires in a straight line |
|
Recently, the use of litz wires or assembled wires in motor coils has been on the rise as measures against eddy current loss. |
|
Selco uses winding technologies and specialized processing techniques to process a variety of litz and assembled wires to create the desired shapes.
|
Turning round assembled wire into flat compressed assembled wire

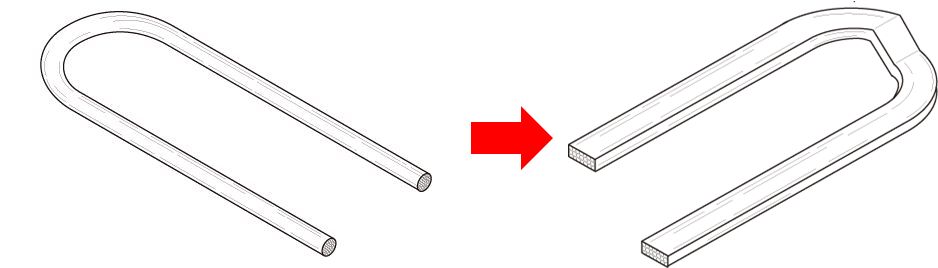

To visualize this, a tightly wound coil is compressed and molded into a U shape, as shown below.
|
Turning round litz wire and assembled wire into flat litz wire and assembled wire |
|
For wire strands, or even round wire, litz wire or assembled wire, their shapes can also be compressed and molded all at once into round electric wire and processed into the designated shape. |
|
For segment type motors |
|
Selco can mold into any shape you want! |
