Air core bent and curved coils
|
With Selco's bending or curving technologies, a wide range of coil assemblies have been achieved using combinations previously thought inconceivable. |
|
The most important basis for these coils is high density winding (perfect alignment). |
|
Selco's specialty is in bending and compressing tightly wound coils! |
|

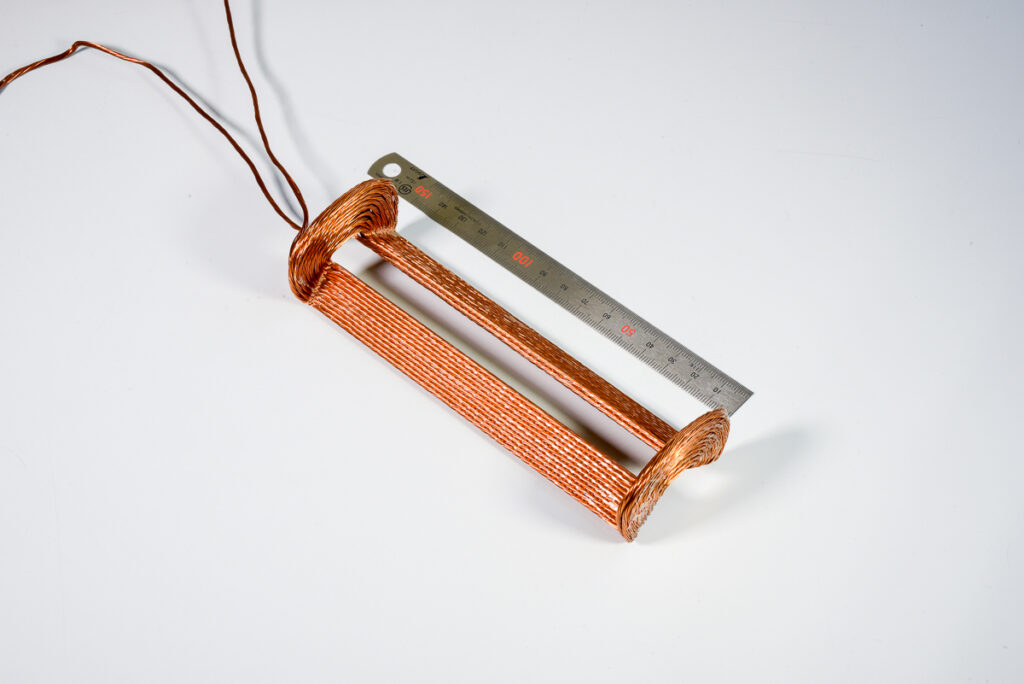

Litz wire / curved / coil bent at right angle |
|
0.75 x 180T |
|
These coils are combined for use in linear motors |
|

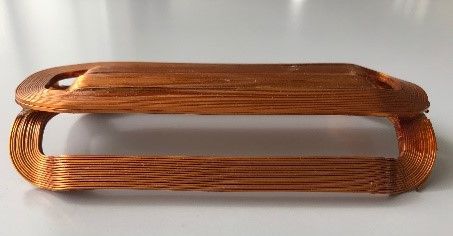

Flat wire bent coils |
|
0.6 x 1.3 x 28T alpha-winding |
|
These coils are combined for use in motors |
|
Tightly wound to high density |
||||
|
Curved |
||||
|
Motor coil assembly
|
|
Litz wire bent coils |

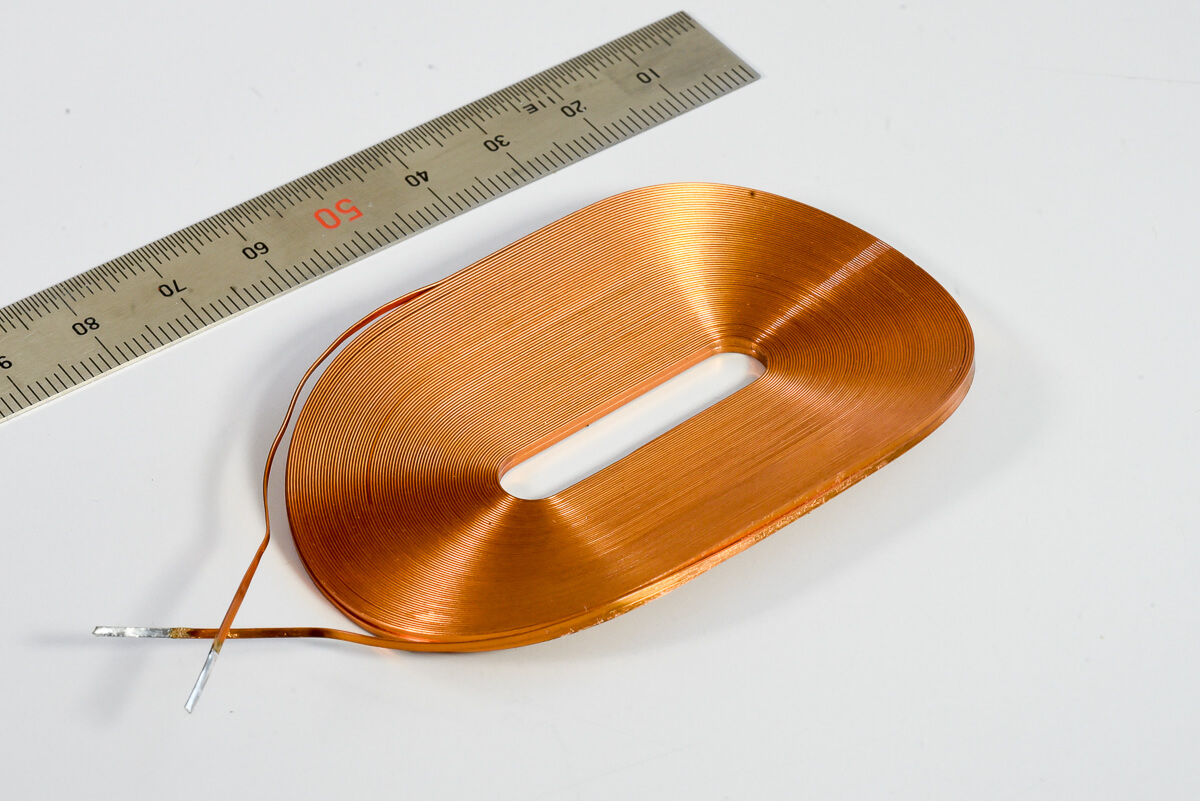

Flat & curved coils
Techniques to bend or curve coils may look dangerous at first glance, but by fully understanding the coil properties and holding key points in place, we are able to process coils without issue.
Flat & curved coils
|
Cross-sectional image of flat alpha curved coil |
